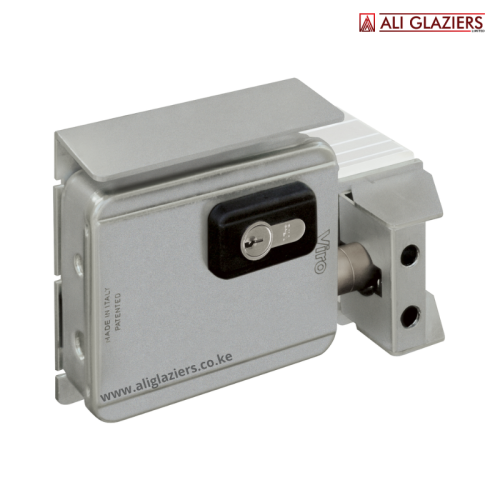

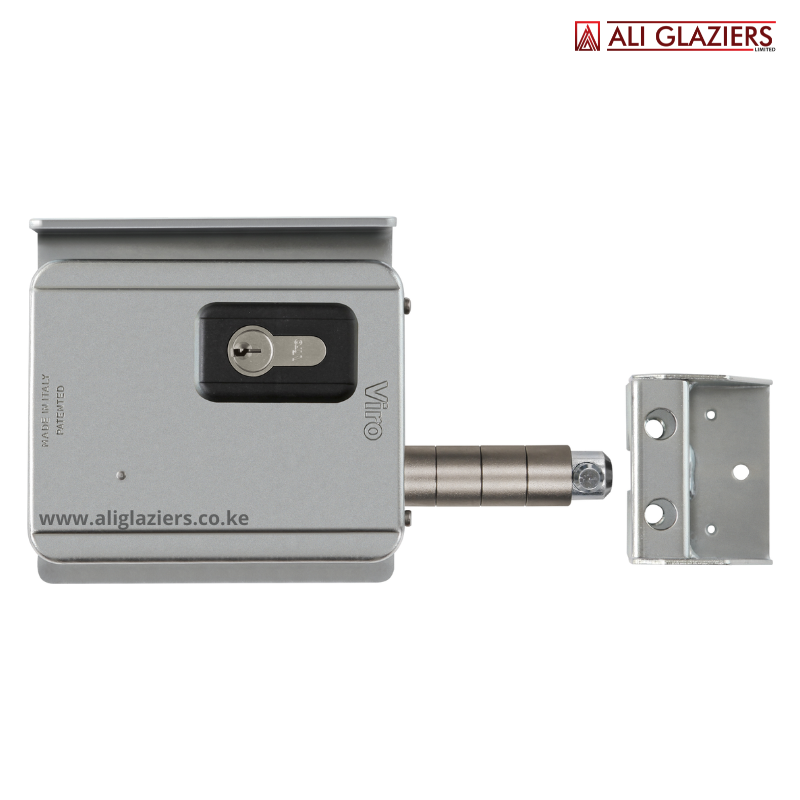

VIRO 7905 ELECTRIC RIM LOCK

GENUINE VIRO 7905 ELECTRIC RIM LOCK FOR SLIDING GATES IN NAIROBI , KENYA

ROTATING SPIKE ELECTRIC LOCK FOR SLIDING GATES WITH HALF CYLINDER - 50MM

This electric lock is the only extremely high-reliability lock specially designed for use on outdoor, manual or automated sliding gates. The special spike mechanism will tolerate a thermal expansion in the dimensions of sliding gates of up to 9.6 mm A thermal expansion of 9.6 mm is the equivalent to a change in temperature of 100° C for a gate which is 8 metres long. Also suitable for manual sliding gates (fitted with a double through cylinder).Unlike closing systems with padlocks, chains and standard mechanical shackle locks, the V09 lock offers new, more effective levels of security. It is easy to use, has a pleasing appearance, and cannot be attacked from the outside. It is weatherproof.V09 electric lock, thanks to the installation kit, is also ideal for garage sectional doors and motorised shutters.

• Installation: Horizontal on the fixed upright of the sliding gate; or vertical, with accessories, on the inside of the sectional door and motorised shutters.
• Backset: 50 mm.
• Opening impulse time: Controlled by an electronic board, can be interfaced with automation systems.
• Replaceable coil.
• Voltage: 12V OR 24V A.C. OR D.C. (24V recommended)
• Case: one-piece galvanized steel, with cable entry on the back (for maximum protection) or on the side (opening a prepunched hole).
• Cover: galvanized steel, with automatic security block when the lock is closed.
• Rotating spike dead-bolt: Highly collision-proof, inserted in steel guides, protected by case-hardened steel rotating rings, operated by stainless steel springs. Guides and rotating rings treated with "NIPLOY PROCESS" nickel plating, anticorrosion.

Mechanism

• -Brass pins;
• Mushroom brass counterpins, pick-resistant;
• Phosphor bronze pin springs.
• Striker: galvanized steel, easily fitted thanks to the practical lock alignment template (SOLD SEPARATE)
